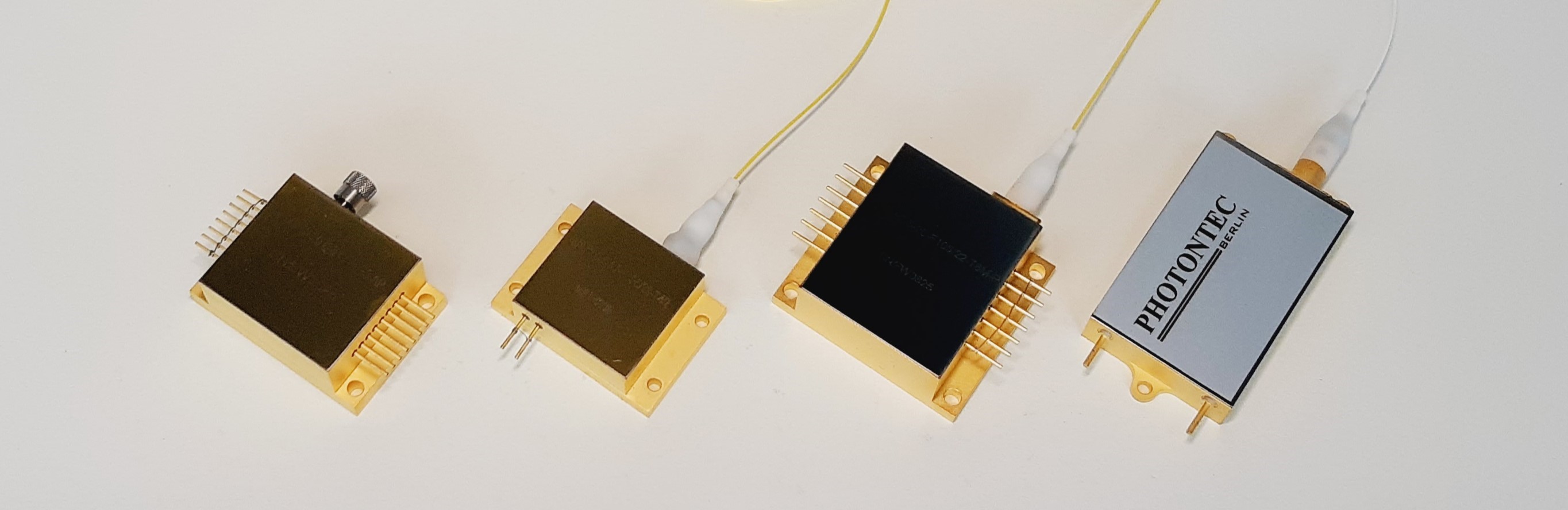

Fiber-coupled Laser Diode

The output power and fiber pigtail are customizable.
Wavelength
nm		 Output Power
W		 Fiber Core
µm		 NA Accessories
(optional)		 Model
405±10 max.20 105 0.22 Photodiode

Thermistor
 M405±10-X-F105/22
max.100 400 M405±10-X-F400/22
450±10 25 100
200
400		 0.22 Photodiode

Thermistor
 M450±10-25-F100/22
50 M450±10-50-D400/22
M450±10-50-F100/22
100 M450±10-100-F100/22
200 M450±10-200-F100/22
520±10 max.20 105 0.22 Photodiode

Thermistor
 M520±10-X-F105/22
max.70 400 M520±10-X-F400/22
793±3 10 105 0.22 Photodiode

Thermistor
 M793±3-10-F105/22
20 M793±3-20-F105/22
30 M793±3-30-F105/22
50 M793±3-50-F105/22
90 M793±3-90-F105/22
130 135 M793±3-130-F135/22
200 M793±3-130-F200/22
808±3/10 4.5 105 0.22 TEC, NTC, PD M808±3-4.5-F105/22
20 200, 400 Red Aiming

Photodiode

Thermistor		 M808±10-20-D400/22
30 M808±10-30-D200/22
40 M808±10-40-F200/22
50 M808±10-50-F200/22
100 M808±10-100-F200/22
120 400 M808±3-120-F400/22
915±10 10 105 0.22 Photodiode

Thermistor		 M915±10-10-F105/22
30 M915±10-30-F105/22
70 M915±10-70-F105/22
120 M915±10-120-F105/22
170 M915±10-170-F105/22
300 135 - M915±10-300-F135/22
976±3 10 105 0.22 Photodiode

Thermistor		 M976±3-10-F105/22
20 M976±3-20-F105/22
30 M976±3-30-F105/22
40 M976±3-40-F105/22
70 M976±3-70-F105/22
170 M976±3-170-F105/22
450 220 - M976±3-450-F220/22
980±10 50 200 0.22 Photodiode

Thermistor

red aiming		 M980±10-50-D200/22
60 M980±10-60-D200/22
100 M980±10-100-D200/22
150 M980±10-150-F200/22
200 M980±10-200-F200/22
250 M980±10-250-F200/22
900 300 - M980±10-900-F300/22
1470±10 5 105 0.22 Thermistor

Red aiming		 M1470±10-5-F105/22
10 200 M1470±10-10-F200/22
15 M1470±10-15-F200/22
30 M1470±10-30-F200/22
