Laser Diode Module

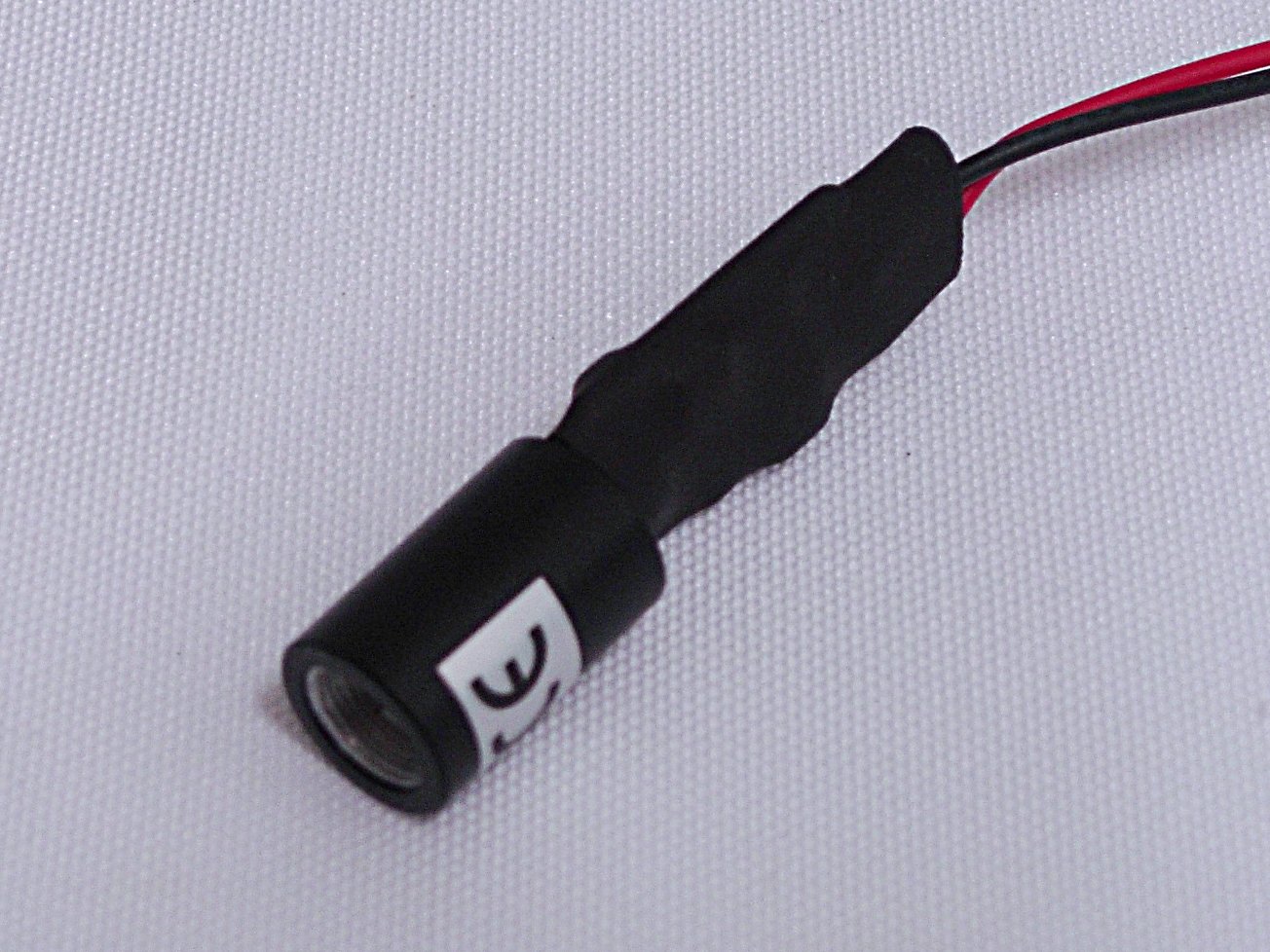

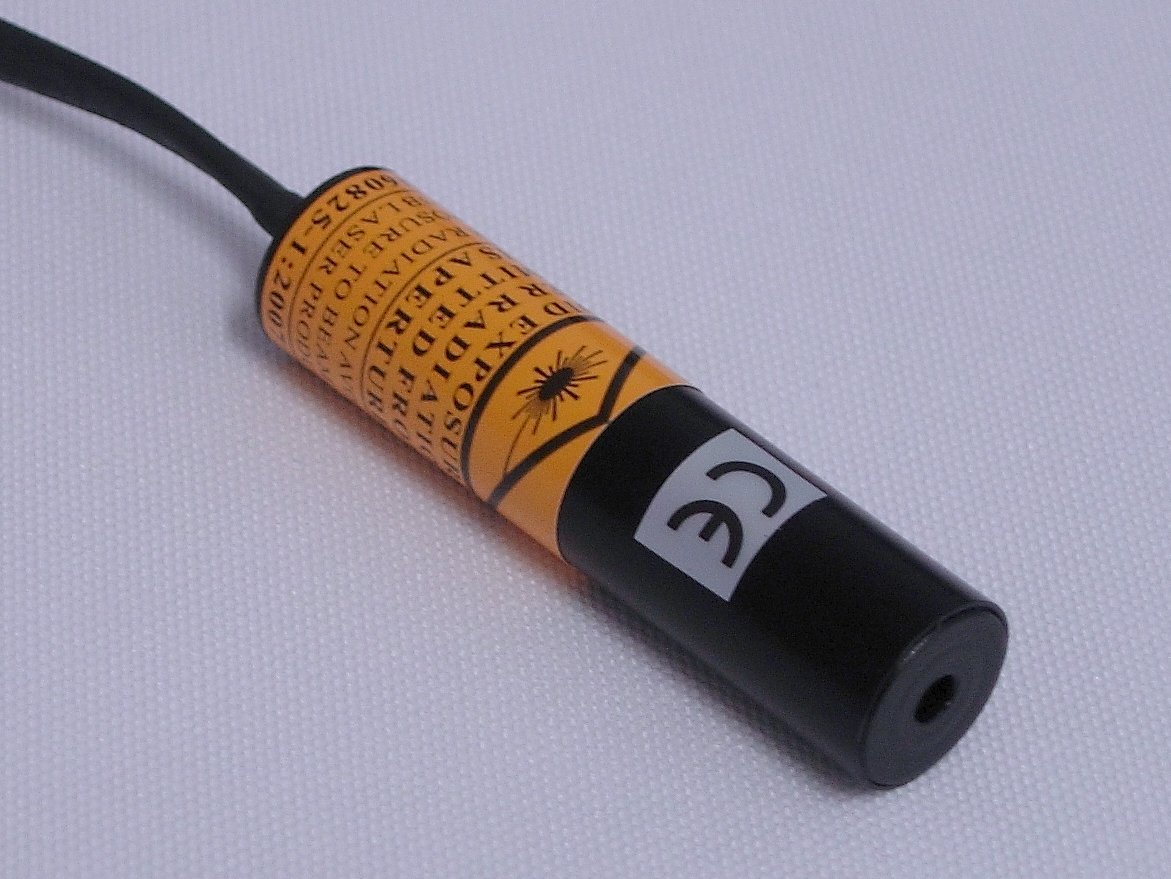

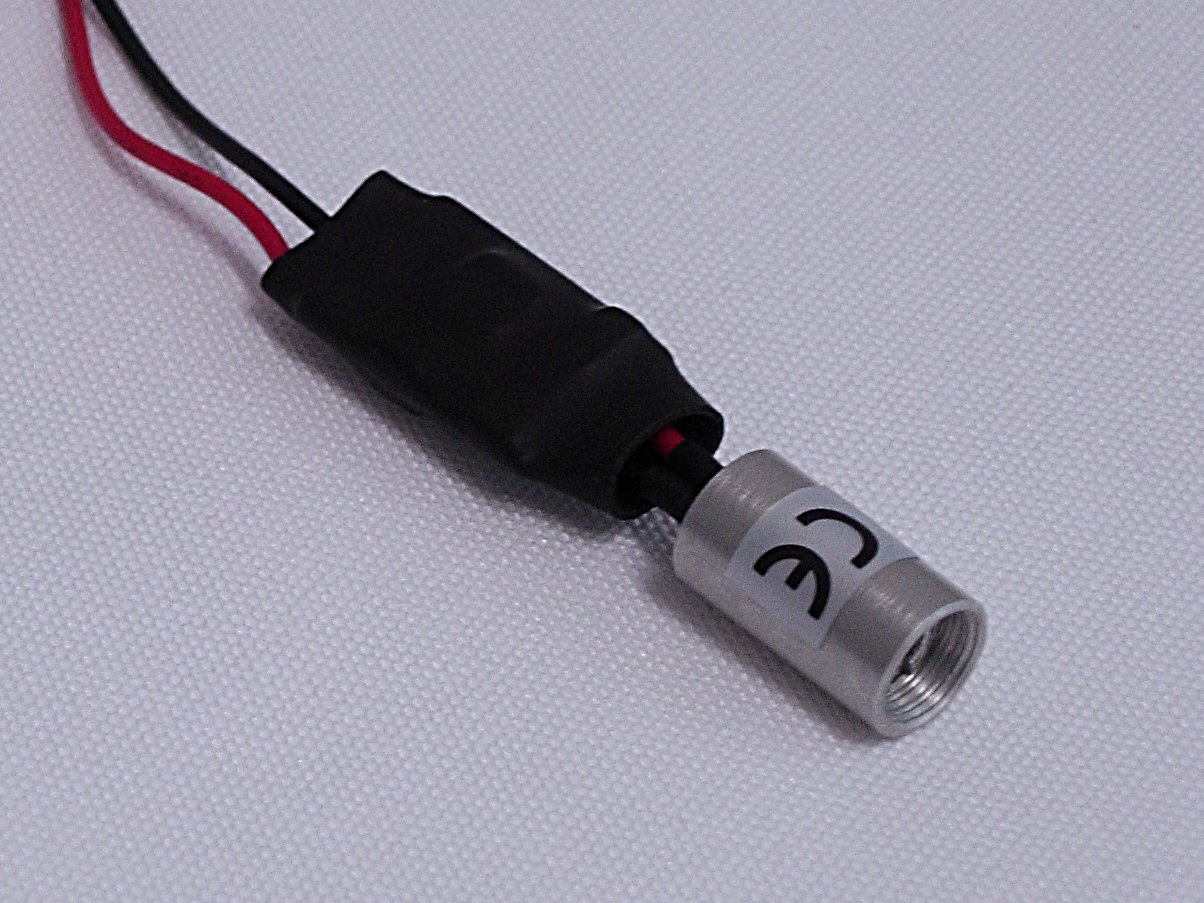

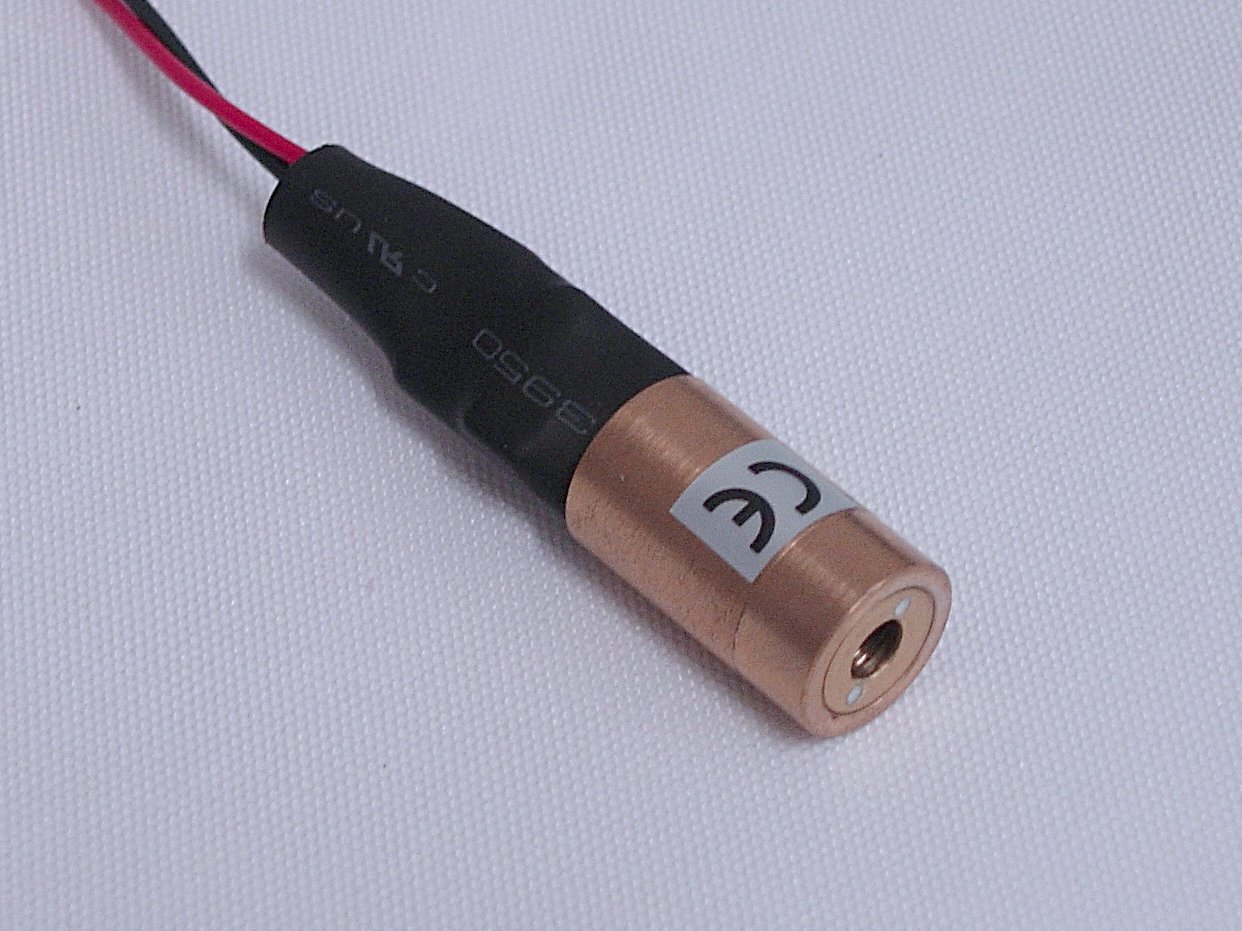

laserdiode_1 laserdiode_2 laserdiode_3 laserdiode_4



Blue laser diode module
Wavelength 405nm, 450nm
Output power 1mW - 150mW@405nm, 1mW - 50mW@450nm
Operating voltage 6V DC
Beam divergence <1mrad dot
Beam minimum diameter <=1mm at 1m
Line thickness <=0.5mm at 0.5m, <=1mm at 2m, <=2mm at 6m
Curvature (line/crossline) <=0.5mm at 5m
Verticality (crossline) <= ±0.5°
Fan angle (line) 10° - 130°
Dimension D:12mm, L:20mm dot or customized
Operating temperature 15° - 30°C
Storage temperature -40° - 80°
Laser classification 1, 1M, 2, 2M, 3R, 3B


Green DPSS laser module
Wavelength 532nm
Output power 1mW - 150mW
Operating voltage 3V or 5V DC
Beam divergence <=1.5mrad
Minimum beam diameter <=1mm a t1m
Line thickness <=0.5mm at 0.5m, <=1mm at 2m, <=2mm at 6m
Curvature (line/crossline) <=0.5mm at 5m
Verticality (crossline) <= ±0.5°
Fan angle (line) 10° - 130°
Dimension D: 12mm, L: 35mm or customized
Operating temperature 10° - 30°C
Storage temperature -40° - 80°
Laser classification 1, 1M, 2, 2M, 3R, 3B


Green laser diode module
Wavelength 520±10nm
Output power 1mW - 30mW
Operating voltage 2.1 - 12V DC
Beam divergence 0.2 -2mrad
Minimum beam diameter <=1mm at 1m
Line thickness <=0.5mm at 0.5m, <=1mm at 2m, <=2mm at 6m
Curvature (line/crossline) <=0.5mm at 5m
Verticality (crossline) <= ±0.5°
Fan angle (line) 5° - 180°
Operating temperature -10° - 60°C
Storage temperature -20° - 70°
Laser classification 1, 1M, 2, 2M, 3R, 3B


Red laser diode module
Wavelength 635nm, 650-660nmnm
Output power 0.4 - 16mW@635nm, 0.4 - 120mW@650-660nm
Operating voltage 3V or 5V DC
Beam divergence <=0.3mrad dot
Minimum beam diameter <=1mm at 1m
Line thickness <=0.5mm at 0.5m, <=1mm at 2m, <=2mm at 6m
Curvature (line/crossline) <=0.5mm at 5m
Verticality (crossline) <= ±0.5°
Fan angle (line) 10° - 130°
Dimension D: 6.5mm - 26mm, L: 11mm - 110mm or customized
Operating temperature 10° - 40°C
Storage temperature -40° - 80°
Laser classification 1, 1M, 2, 2M, 3R, 3B


Notes:
1. Both adjustable and fixed focus and working distance are available.
2. Ohter wavelengths at 473nm, 480nm, 780nm, 808nm and 980nm are available.
